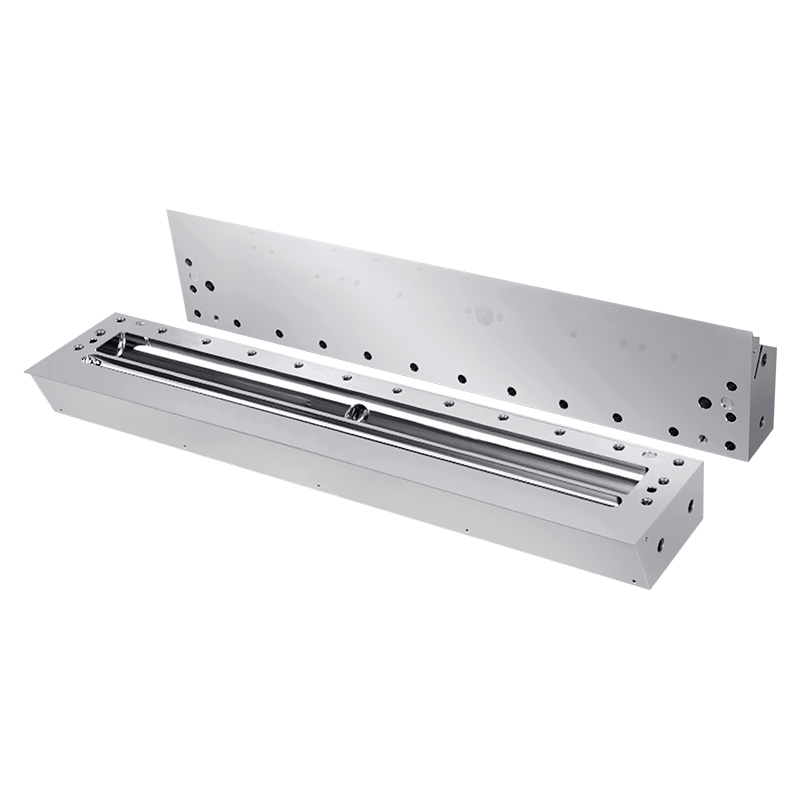

All-ceramic Coating DieMade of ceramic material, it offers several advantages including elimination of metal particle impurities, excellent wear and corrosion resistance, strong resistance to temperature deformation, and improved wide-width high-speed coating performance. The coating chamber and installation method can be customized to meet specific requirements.Detailed Introduction

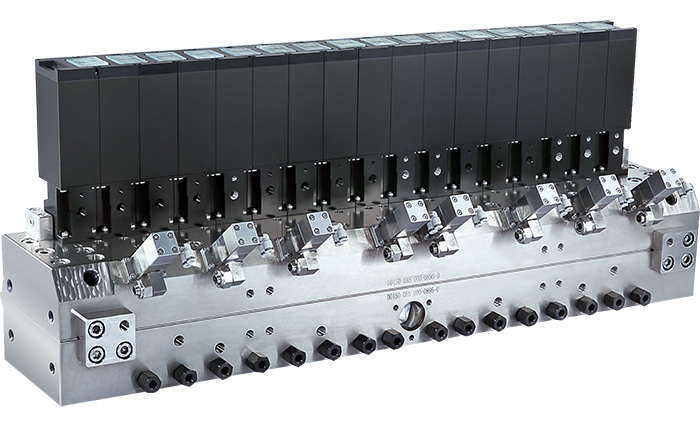

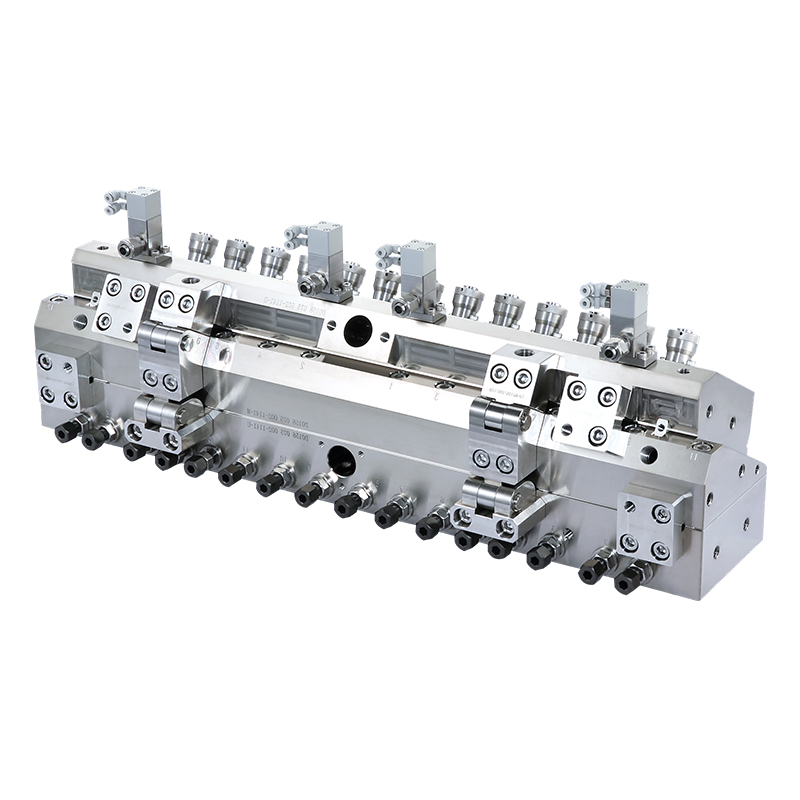

Double-Layer Fully Automatic Coating DieFully automatic adjustment, which saves labor and provides visual and automatic adjustment. The upper and lower die heads can be independently adjusted automatically, which assists in the first-piece debugging and reduces the adjustment time. It has a special exhibition design, customized coating chamber, and independent dispensing function.Detailed Introduction

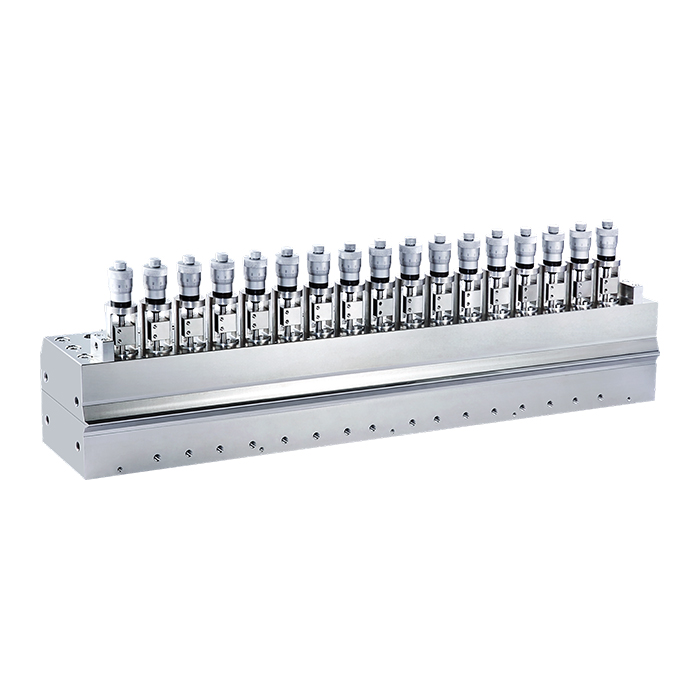

Precision Coating DieThe precision coating die head can be changed online, and the operation is simple. The precision relief valve at both ends is used to discharge the flow to adjust the surface density.Detailed Introduction

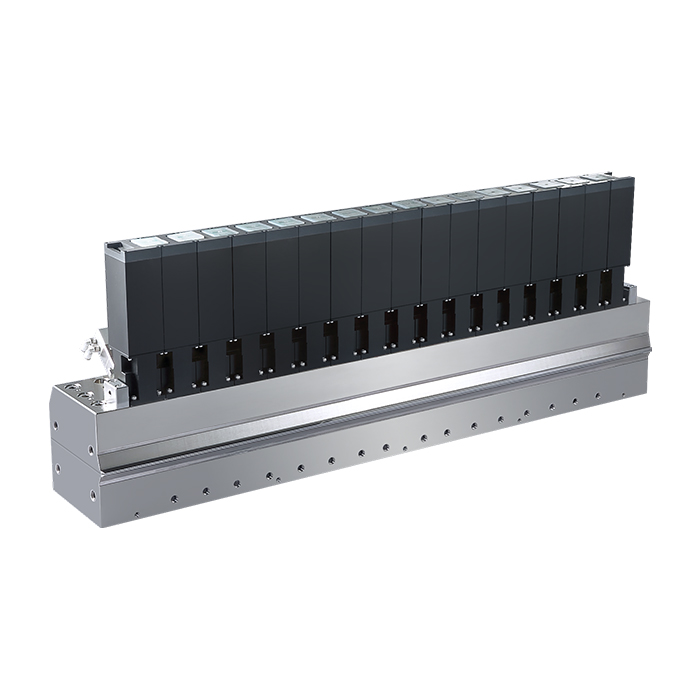

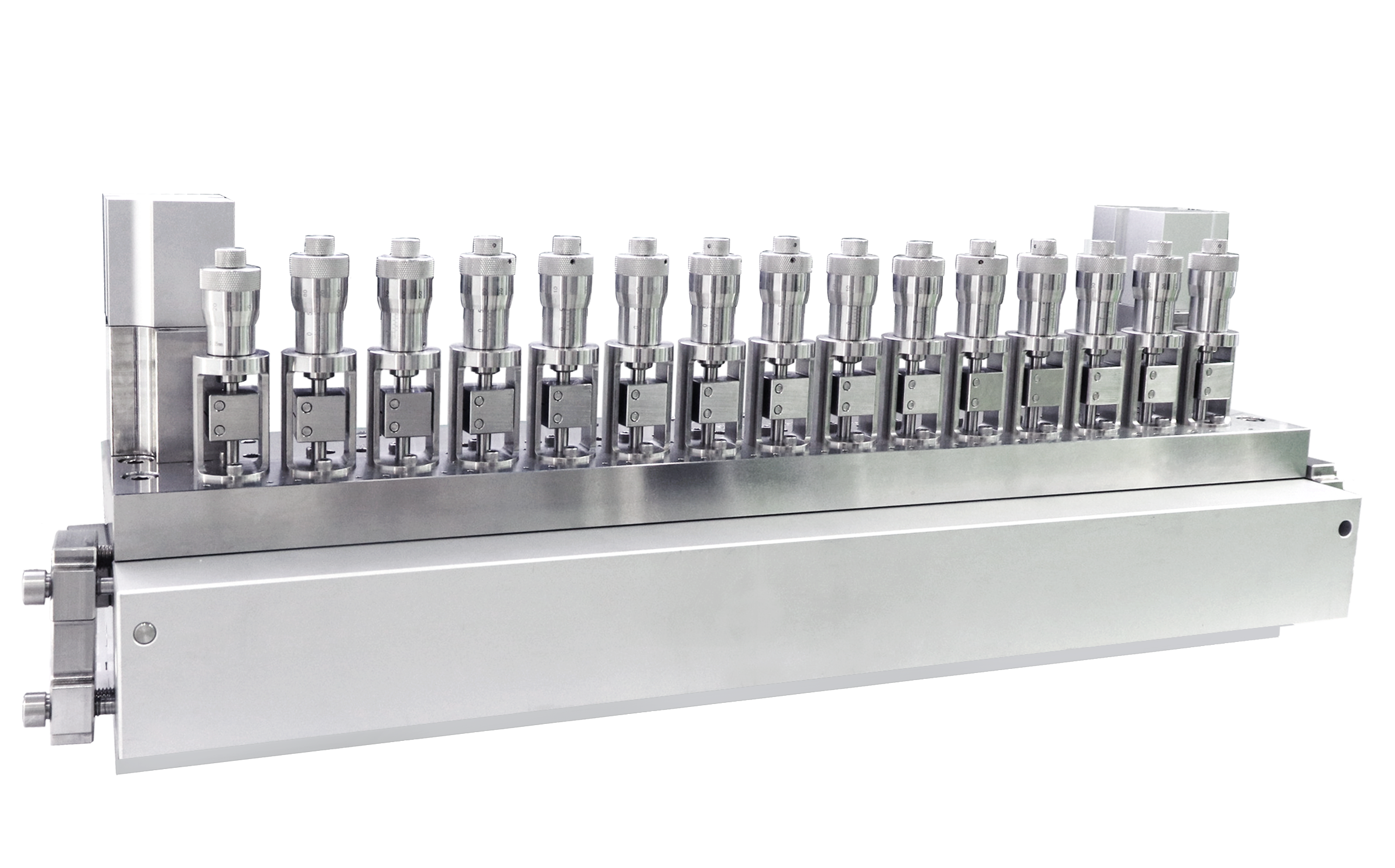

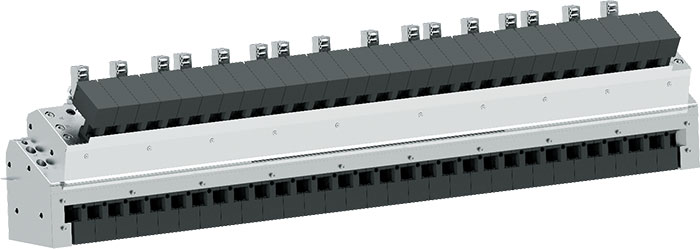

Automatic Coating Slot DieAutomatic coating slot die visualized and automated process regulationDetailed Introduction- Basic Parameters
Adjustment method: automatic closed loop
Length specification: ≤2000mm
Roughness of runner: ≤Ra0.025
Flatness: ≤3um
Straightness: ≤3um
- Features
Visualized and automated process regulation
Comes with TD, MD direction mass load control software
Short commissioning time
Bus interface, less wiring, fast response
Optional wet film thickness measurement system
Optional independent dispensing system
Optional feeding system
Cov can reach 0.2%
Successful implementation cases of several mainstream customers
Installation size can be customized
A variety of body materials are available
Lip structure and runner size are customized design

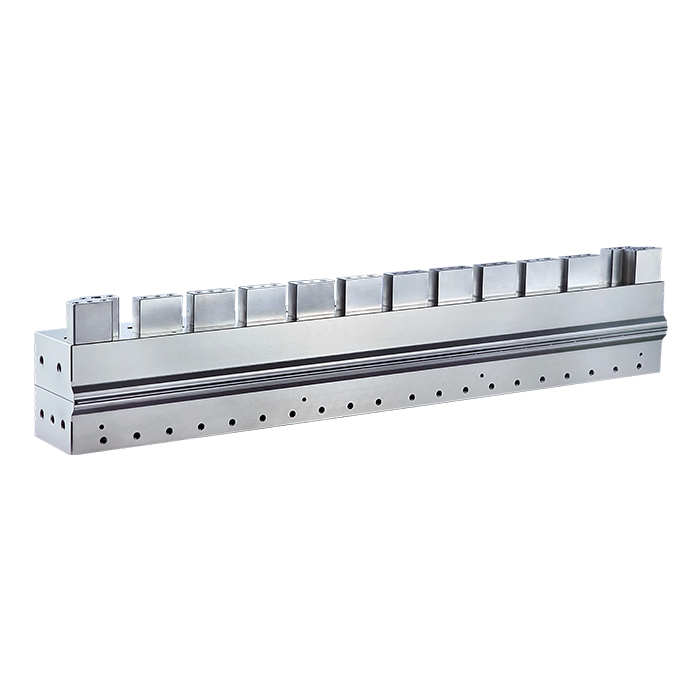

Push-pull Adjustment Coating DiePush-pull adjustment coating die adopts a special lip structure design, which has high precision and good stability.Detailed Introduction- Basic Parameters
Adjustment method: push-pull rod
Length specification: ≤2000mm
Roughness of runner: ≤Ra0.025
Flatness: ≤3um
Straightness: ≤3um
- Features
Stable meniscus, high product precision
Rich product implementation cases
Independent dispensing function
Special lip design
Self-cleaning runner, effectively reducing local
abnormalities at the edge
Customized installation method
Hundreds of use cases
Installation size can be customized
A variety of body materials are available
Lip structure and runner size are customized design

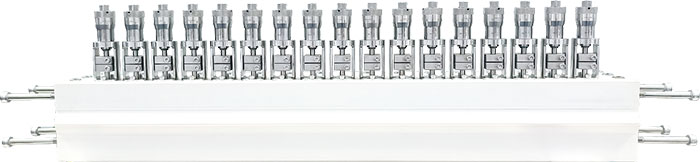

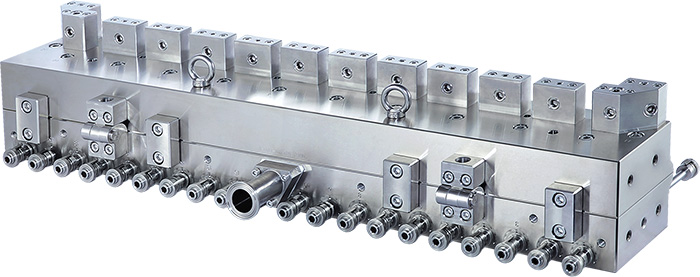

Double Layer Slot DieThe double-layer slot die is mainly suitable for continuous coating, which can be adapted to existing models and is compatible with single-layer coating.Detailed Introduction- Basic Parameters
Adjustment method: differential head + push-pull rod
Length specification: ≤2000mm
Roughness of runner: ≤Ra0.025
Flatness: ≤3um
Straightness: ≤3um
- Features
Mainly suitable for continuous coating
Adapt to existing machines
Compatible with single layer coating
Online type change， simple operation
Self-cleaning runner， effectively reducing local abnormalities at the edge
Independent dispensing function
Range of upper and lower mass load ratio： 1：4~4：1
Cov： 0.3%
Installation size can be customized
A variety of body materials are available
Lip structure and runner size are customized design

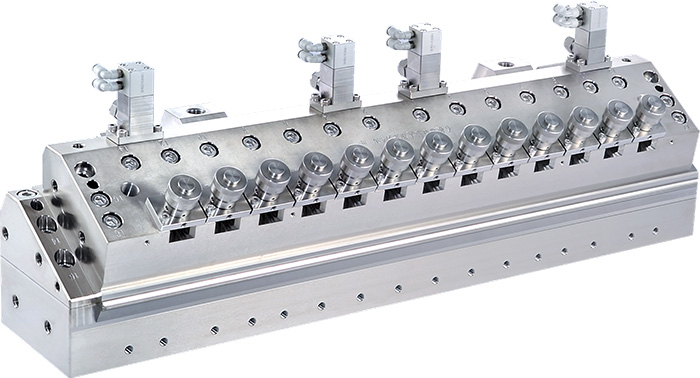

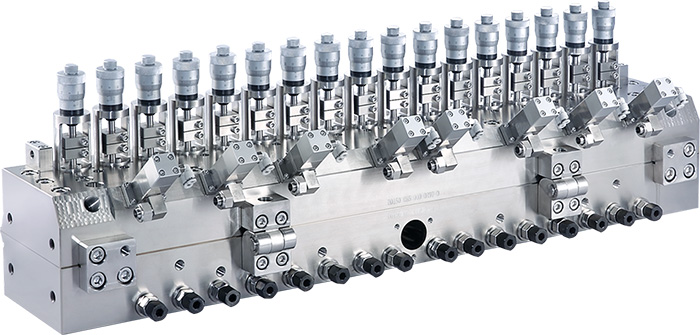

Double Adjustment Slot DieDouble adjustment slot die can realize quantitative adjustment, with a wide adjustment range, and at the same time, the customized lip design is adopted, and the meniscus is stable.Detailed Introduction- Basic Parameters
Adjustment method: differential head + push-pull rod + differential thread
Length specification: ≤2000mm
Roughness of runner: ≤Ra0.025
Flatness: ≤3um
Straightness: ≤3um
- Features
The adjustment can be quantified， and the adjustment range is wide
Special lip design,stable meniscus
Independent dispensing function
Self-cleaning runner， effectively reducing local abnormalities at the edge
Customized installation method
Can be upgraded to a fully automatic coating die
More than 100 use cases
Installation size can be customized
A variety of body materials are available
Lip structure and runner size are customized design

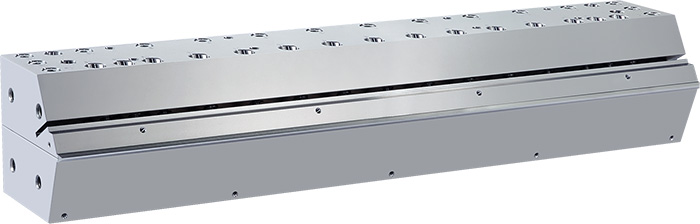

Slot Die with Differential Thread AdjustmentSlot Die with Differential Thread Adjustment Simple structure, strong versatilityDetailed Introduction- Basic Parameters
Adjustment method: differential thread
Length specification: ≤2000mm
Roughness of runner: ≤Ra0.025
Flatness: ≤3um
Straightness: ≤3um
- Features
Simple structure, strong versatility
Easy to maintain and cost-effective
Specialized lip design
Customized coating cavity
Customized installation method
Can be upgraded to a smart coating die
Hundreds of use cases
Installation size can be customized
A variety of body materials are available
Lip structure and runner size are customized design

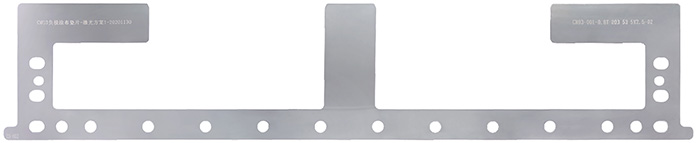

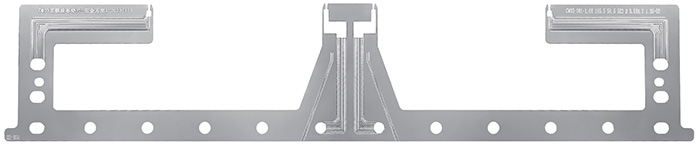

Normal shimPatented gasket design prevents leakage, poor mixing, instability, etc.
Significant improvement in edge quality
Expert knowledge about runner characteristics can improve coating accuracyDetailed Introduction
Dispensing shimPatented gasket design prevents leakage, poor mixing, instability, etc.
Significant improvement in edge quality
Expert knowledge about runner characteristics can improve coating accuracyDetailed Introduction
